QuickSeal qPCR Crystal

QuickSeal qPCR Crystal

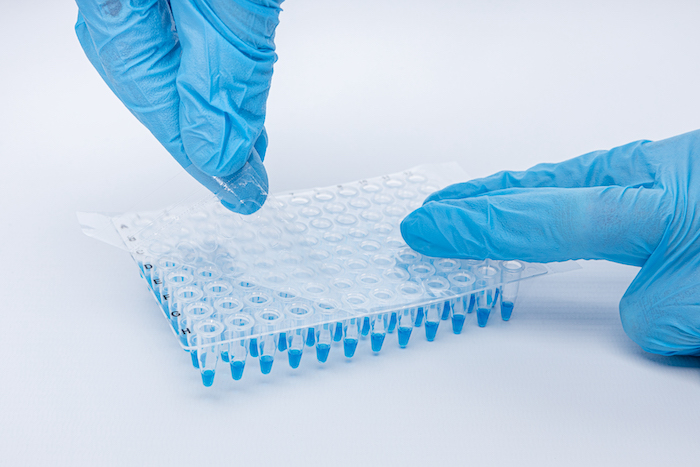

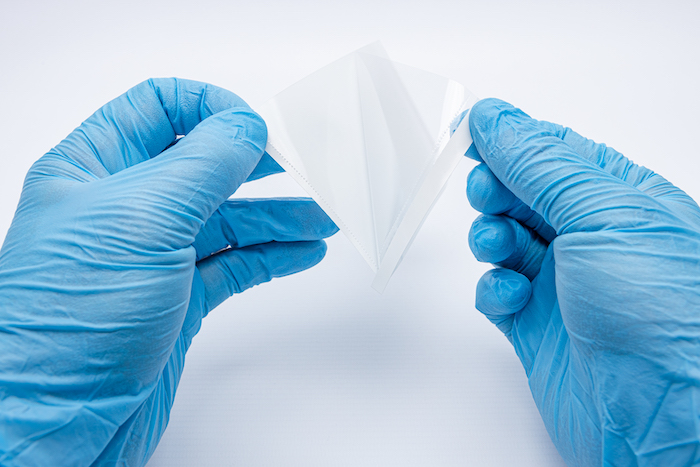

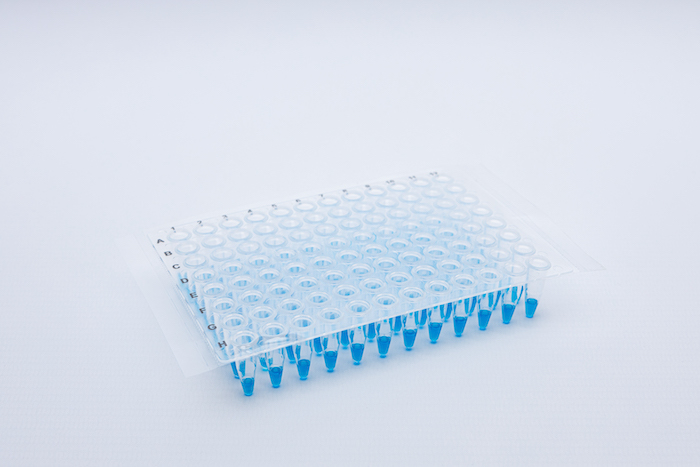

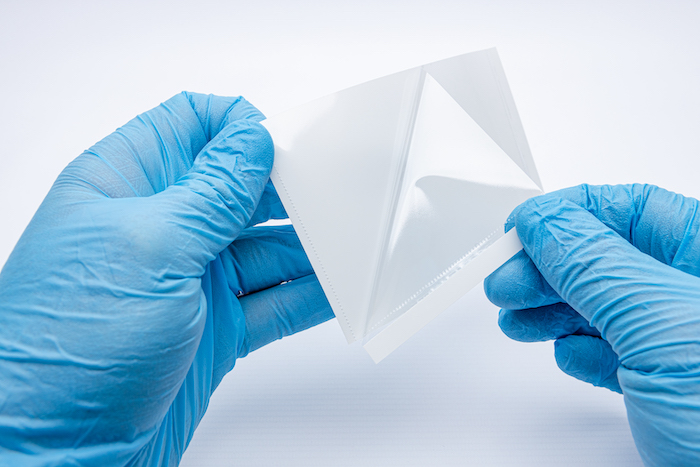

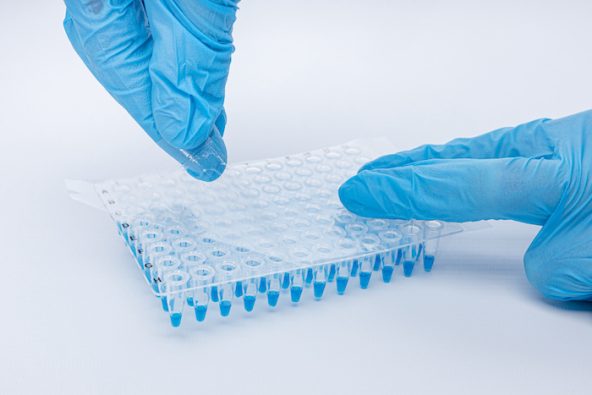

Optically clear adhesive film with pressure activated adhesive. Seal is peelable; suitable for qPCR and other imaging techniques including crystallization. Optically clear seal specifically developed for optical applications, particularly qPCR. It is non sticky when removed from the packaging; this aids handling when wearing gloves. The adhesive is contained within small capsules, allowing light to pass through to ensure the optical clarity of the seal. When the seal is in position, pressure can be applied to burst the capsules, releasing a strong adhesive only where the seal touches the raised well rims of the plate – the rest of the seal area above the wells remains optically clear. For all adhesive seals, the best sealing results are achieved using our Hand Roller or KAPS 500 Auto Sealer.

Key Features

  • Non-pierceable
  • Peelable
  • Seal integrity range: -40 °C to 110 °C
  • Applications: qPCR and other fluorescent applications, plate readers, microscopy, and protein crystallization (96 or 384 well)
  • Removal: will not leave a sticky residue on the plate surface following removal



Available in the following formats

  • Roll 100m x 80mm
    SKU: IST-121-080LR
  • Roll 100m x 80mm Sterile
    SKU: IST-121-080SR
  • Pack of 100 Sheets 140mm x 80mm
    SKU: IST-121-080LS
  • Pack of 100 Sheets 140mm x 80mm Sterile
    SKU: IST-121-080SS
  • Pack of 5 Sheets 140mm x 80mm
    SKU: IST-121-080TS
