ClearASeal Pierce (for Abi 3730)

ClearASeal Pierce (for Abi 3730)

Thin polyester heat sealing film which is easily pierceable with autosampler needles/ABI® 3730. The seal is suitable for PCR, qPCR and optical applications. Heat sealing offers a 100% effective method for plate sealing for a complete seal integrity, as well as being quick and cost effective. Our ClearASeal Pierce heat sealing film is an optically clear polyester backed film, forming a pierceable seal to polypropylene, polyethylene, polystyrene and cyclic olefin copolymer (COC) plates. The optical clarity of this seal enables its use for sealing plates required for imaging use, including fluorescent detection methods such as qPCR and colorimetric assays. Its pierceability renders it useful for automation and for use on needle, capillary and tip based liquid handling systems. It is effective on the ABI®3730 capillary sequencer, removing the need for the use of expensive septa mats. The ClearASeal Pierce forms a complete seal to a plate enabling moderately low and high temperature uses, including PCR when using a pressurized heated lid thermal cycler. It demonstrates a moderate solvent resistance and can be utilized for short term compound storage. This seal is available as sheets, for use with manual and semi-automated sealers.

Key Features

  • Permanent seal
  • Easily pierceable with autosampler needles/ABI®3730
  • Seal integrity range: -80 °C to 80 °C (or 110 °C when used with pressurized heated PCR lid)
  • Moderate solvent resistance
  • Optically clear Use
  • Seals polypropylene, polyethylene, polystyrene and cyclic olefin copolymer (COC) plates
  • Suitable for capillary sequencers and automated liquid handlers, e.g. ABI®3730
  • Suitable for PCR and qPCR, and short term storage

Available in the following formats

  • Pack of 100 Sheets Sterile 125mm x 78mm
    SKU: IST-103-078SS

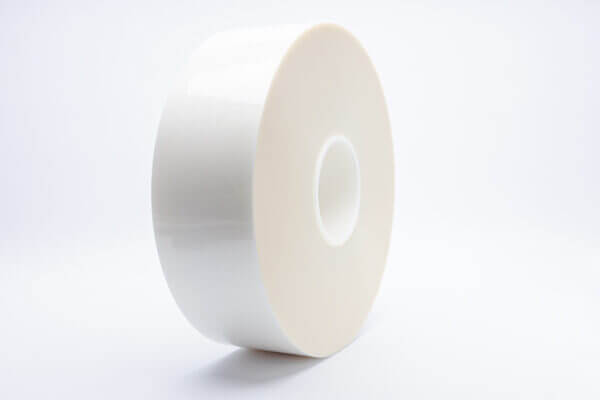

  • Roll 610m x 78mm
    SKU: IST-103-078LR
  • Roll Sterile 610m x 78mm
    SKU: IST-103-078SR
  • Roll 500m x 115mm
    SKU: IST-103-115LR
  • Roll Sterile 500m x 115mm
    SKU: IST-103-115SR
  • Pack of 100 Sheets 125mm x 78mm
    SKU: IST-103-078LS
  • Roll 5m x 78mm
    SKU: IST-103-078TR
  • Roll 5m x 115mm
    SKU: IST-103-115TR
  • Pack of 5 Sheets 125mm x 78mm
    SKU: IST-103-078TS
